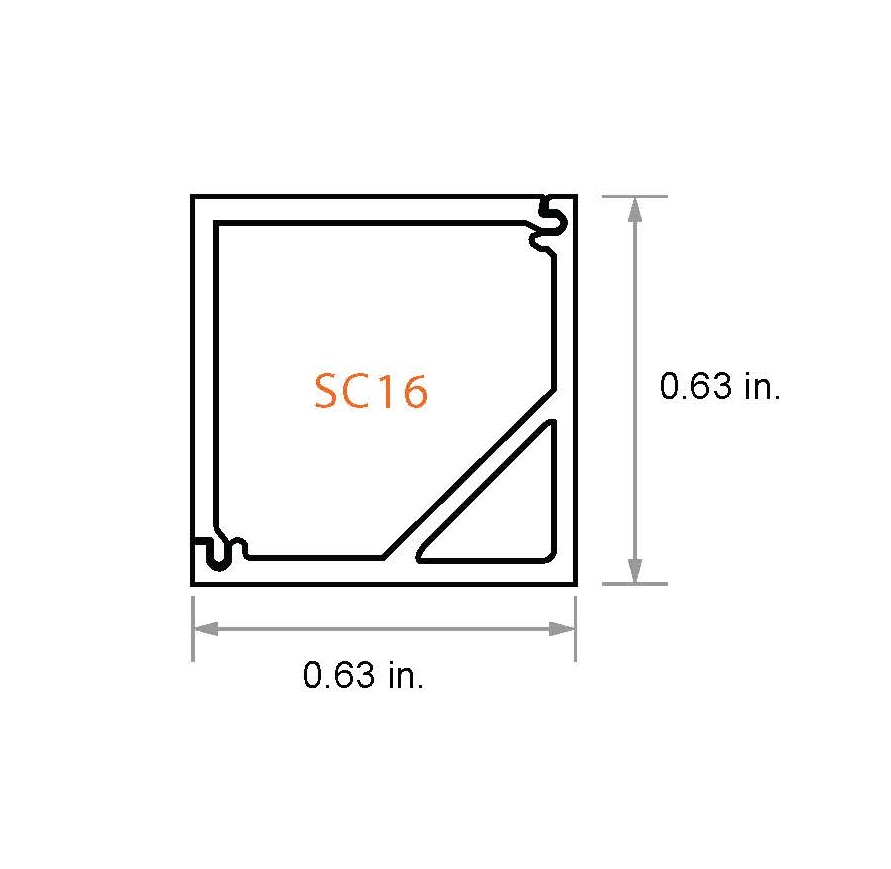

Square Corner SC16

SC16 round corner channel – offers a seamless and smooth transition in corner applications, creating a cohesive and polished look. With an LED output of 200-875 lumens per foot and up to IP65.

The RC16 perfect for both ambient, accent and direct lighting. Illuminate your space with a soft, inviting glow or highlight architectural features to create depth and visual interest.

TECHNICAL SPECIFICATION

Model Lumen Power Length Increments Color Max Run Length Dimming Voltage IP Rating Beam Angle

P
HP
PH1
PH2
PH3
RGB
RGBW
Tunable White
Tunable Warm White

200 lm/ft
300 lm/ft
405 lm/ft
600 lm/ft
875 lm/ft
126 lm/ft
213 lm/ft
242 lm/ft
253 lm/ft

1.3 w/ft
2.2 w/ft
3.0 w/ft
4.0 w/ft
6.1 w/ft
1.5 w/ft
2.4 w/ ft
4.4 w/ft
6.5 w.ft

4.92 in
3.93 in
2.46 in
1.96 in
1.31 in
3.94 in
3.94 in
3.28 in
3.28 in

19k-65k
19k-65k
19k-65k
19k-65k
19k-65k
RGB
RGBW(30k)
19-27k
27-60k







16.4 ft

Low Volt, 0-10V
Low Volt, 0-10V
Low Volt, 0-10V
Low Volt, 0-10V
Low Volt, 0-10V
DMX
DMX
DMX, 0-10V
DMX, 0-10V

24v

IP20-IP65



120°
