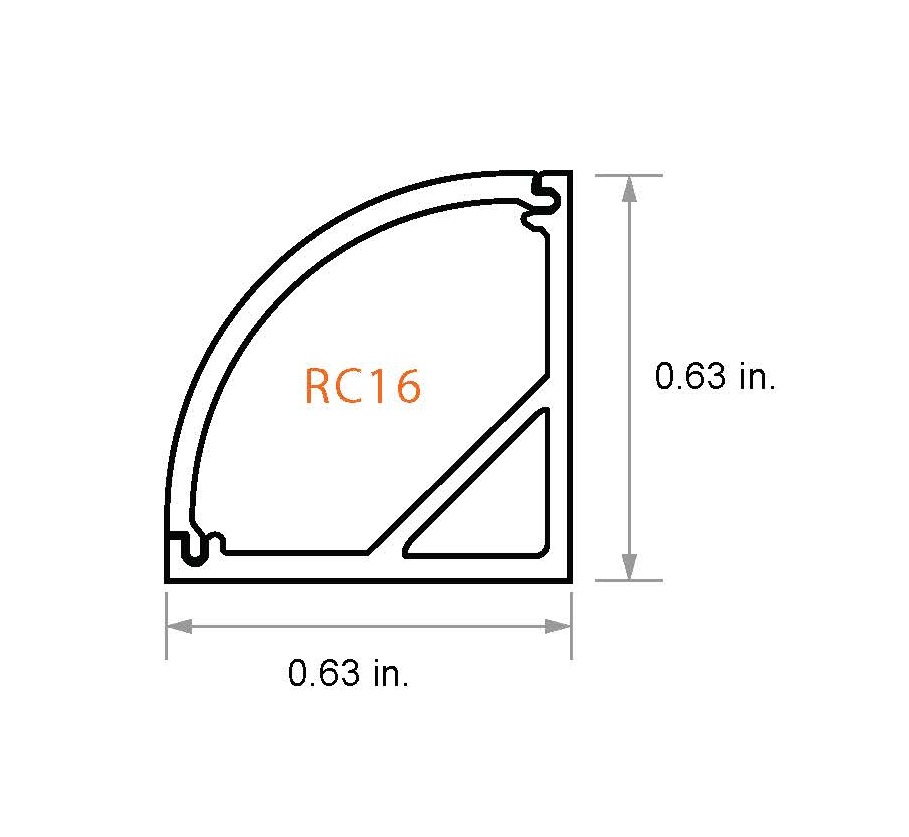

Round Corner RC16

RC16 round corner channel – offers a seamless and smooth transition in corner applications, creating a cohesive and polished look. With an LED output of 200-875 lumens per foot and up to IP65.

The RC16 perfect for both ambient, accent and direct lighting. Illuminate your space with a soft, inviting glow or highlight architectural features to create depth and visual interest.

spec sheet ies files install instructions

TECHNICAL SPECIFICATION

Model	Lumen	Power	Length Increments	Color	Max Run Length	Dimming	Voltage	IP Rating	Beam Angle
P HP PH1 PH2 PH3 RGB RGBW Tunable White Tunable Warm White	200 lm/ft 300 lm/ft 405 lm/ft 600 lm/ft 875 lm/ft 126 lm/ft 213 lm/ft 242 lm/ft 253 lm/ft	1.3 w/ft 2.2 w/ft 3.0 w/ft 4.0 w/ft 6.1 w/ft 1.5 w/ft 2.4 w/ ft 4.4 w/ft 6.5 w.ft	4.92 in 3.93 in 2.46 in 1.96 in 1.31 in 3.94 in 3.94 in 3.28 in 3.28 in	19k-65k 19k-65k 19k-65k 19k-65k 19k-65k RGB RGBW(30k) 19-27k 27-60k	16.4 ft	Low Volt, 0-10V Low Volt, 0-10V Low Volt, 0-10V Low Volt, 0-10V Low Volt, 0-10V DMX DMX DMX, 0-10V DMX, 0-10V	24v	IP20-IP65	120°

Model

Lumen

Power

Length Increments

Color

Max Run Length

Dimming

Voltage

IP Rating

Beam Angle

P
HP
PH1
PH2
PH3
RGB
RGBW
Tunable White
Tunable Warm White

200 lm/ft
300 lm/ft
405 lm/ft
600 lm/ft
875 lm/ft
126 lm/ft
213 lm/ft
242 lm/ft
253 lm/ft
