LBProM

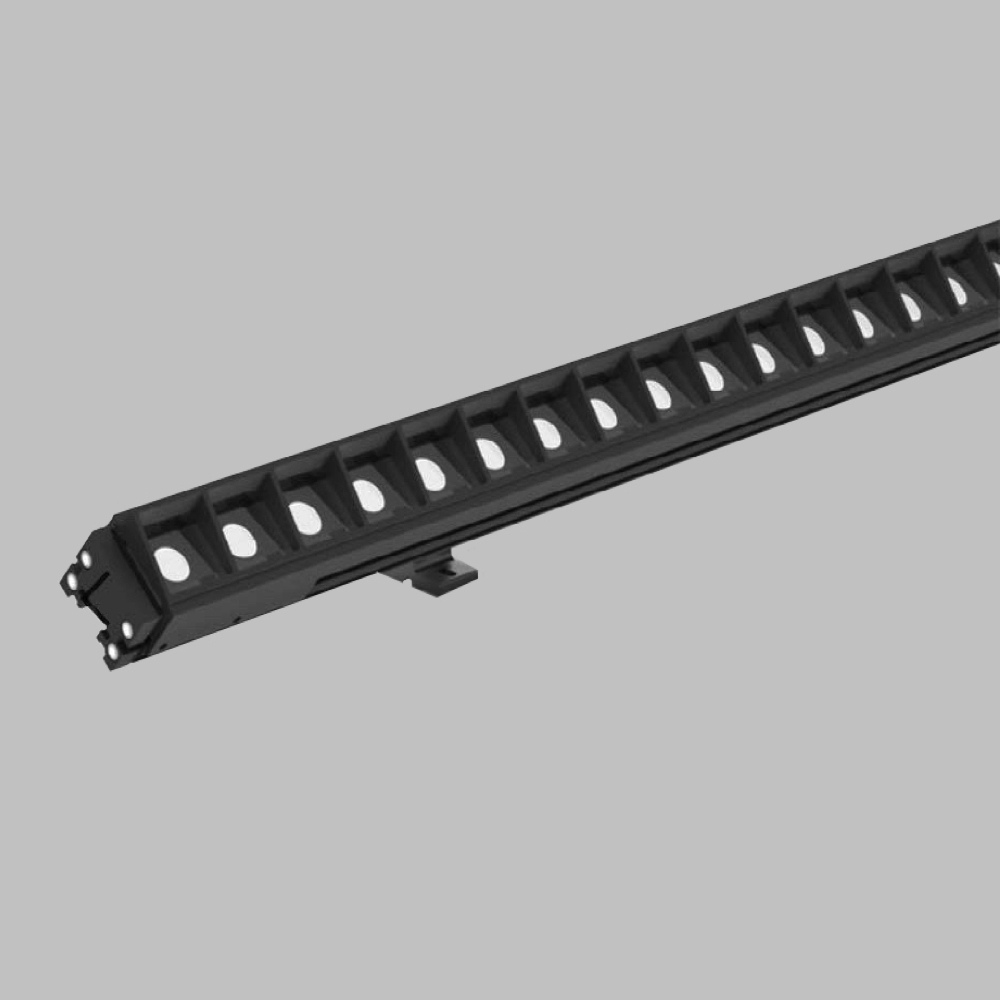

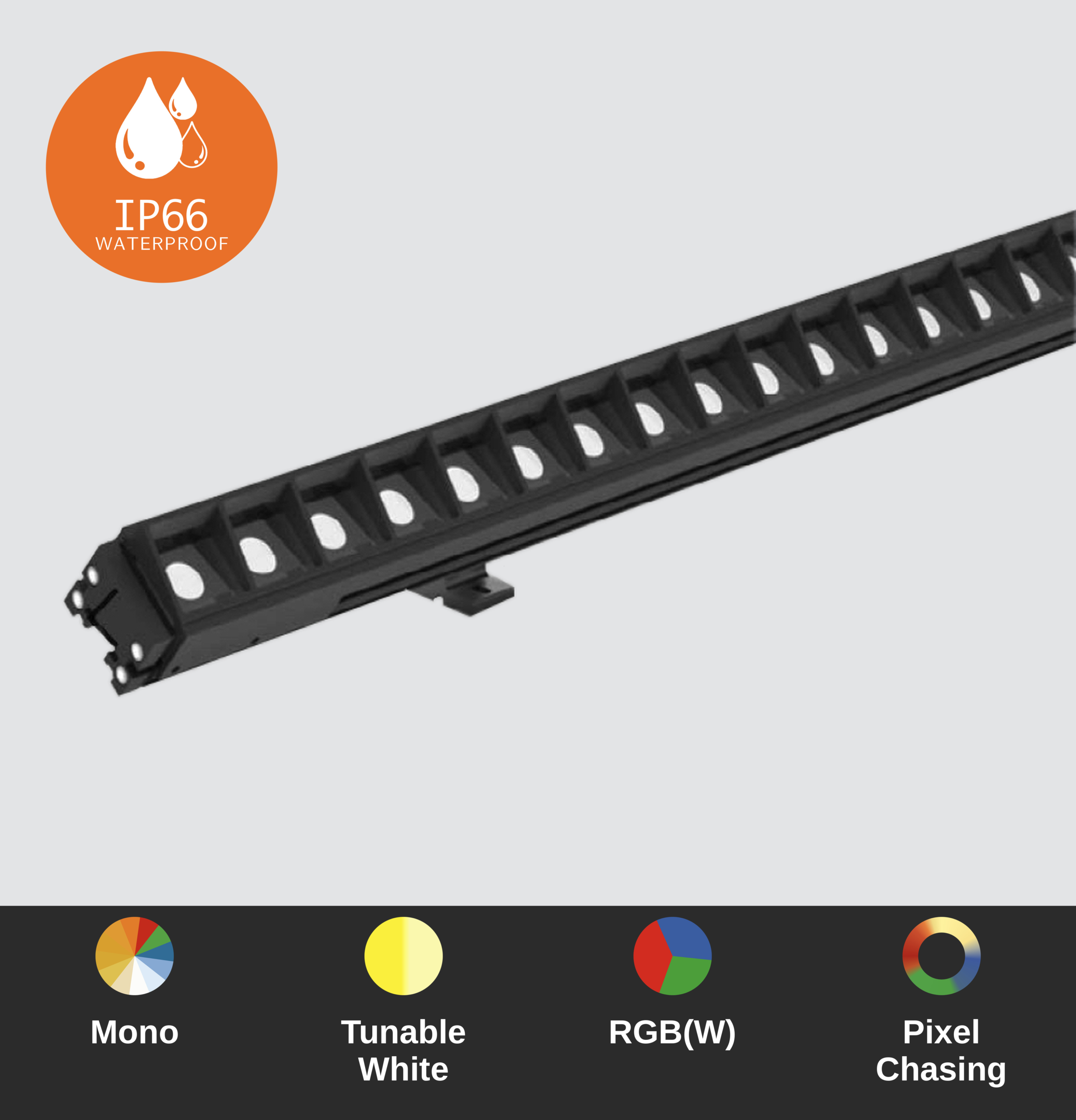

LBProM Linear fixture is crafted for impact and elegance. Available in 1,2,3 & 4 ft and up to 800 lm/ft this fixture effortlessly becomes a focal point in any environment. Whether you’re highlighting architectural features, adding drama to facades, or creating immersive lighting displays, this fixture delivers uniform and vivid illumination that captivates attention. Elevate your lighting design with our Linear LED Flood and Wall Wash Fixture. Illuminate with precision, capture attention, and redefine the way you experience light.

white spec sheet RGB(w) Spec Sheet ies files install instructions

TECHNICAL SPECIFICATION

Model	Lumen	Power	Length Increments	Colors	Beam Angle	Max Run Length	Dimming	Voltage	Rating
LBProM White LBProM RGB LBProM RGBW	800 lm/ft 300 lm/ft	9 w/ft	1,2,3 & 4 ft	27k, 30k, 35k, 40k, 50k, 65k, Custom RGB RGBW	13°,20°,25°,50°,90°, 10°x40° 15°x60°,30°x60°, custom	112 ft @ 120V, 160 ft @ 277V	Low-Voltage, 0-10V, DMX	120/277V	IP66

Model

Lumen

Power

Length Increments

Colors

Beam Angle

Max Run Length

Dimming

Voltage

Rating
